Giant Road Bikes Size Guide
| Size | Height Range |
| X-Small | 5'2"-5'7" |
| Small | 5'5"-5'9" |
| Medium | 5'7"-5'11" |
| Medium/Large | 5'10"-6'2" |
| Large | 6'0"-6'4" |
| X-Large | 6'2"-6'6" |

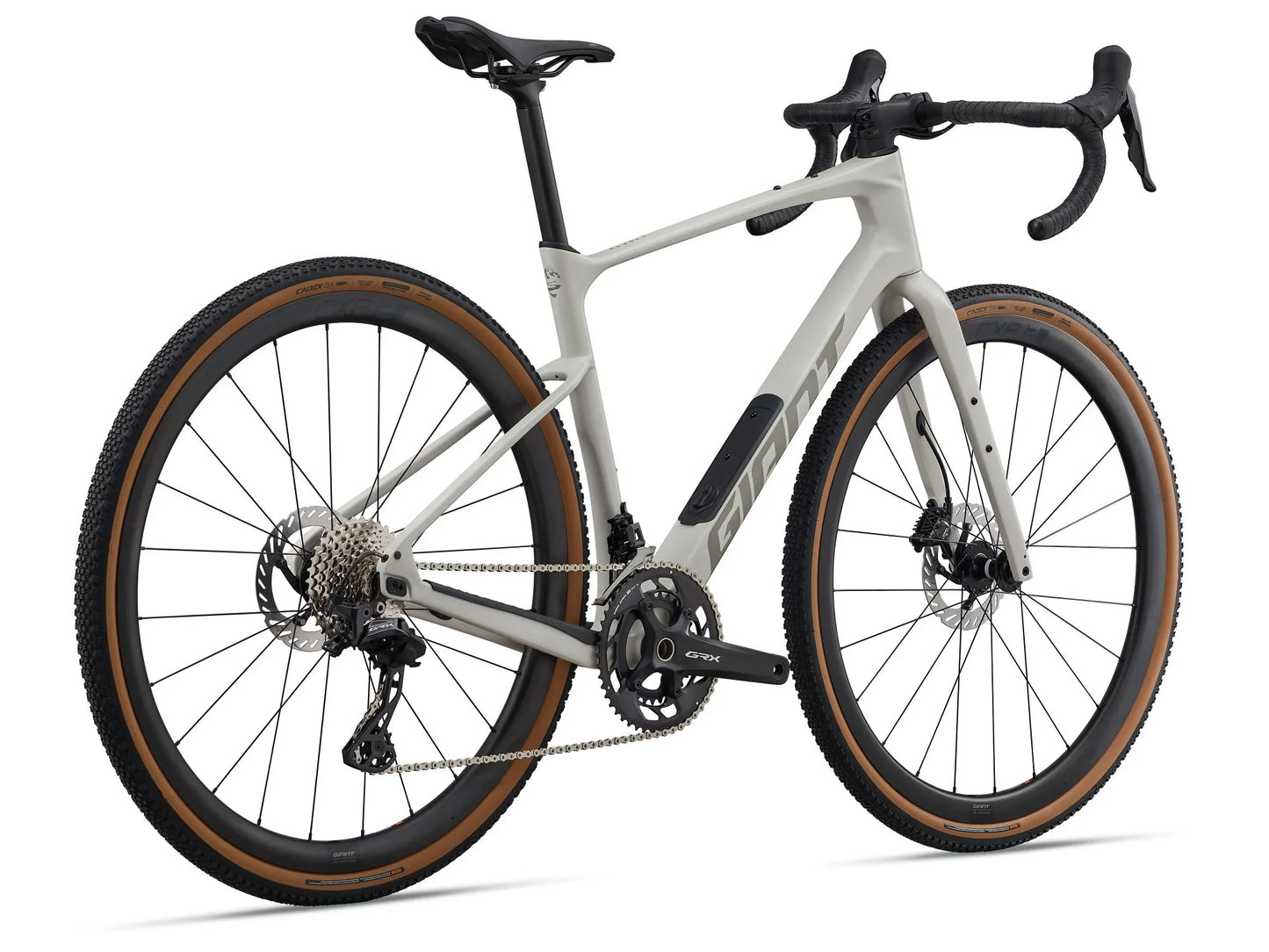

Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.
Key Performance Factors
Fast and light
Tuned compliance
Adaptable to the terrain
D-Fuse
The proprietary “D” shaped composite seatpost damps vibration, resulting in a smooth, compliant ride.
More Info
Overdrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
More Info
Advanced Forged Composite Technology
A state-of-the-art high-pressure molding process is used to produce complex-shaped carbon fiber components that are lighter, stiffer and stronger than similar components made from aluminum. This technology is used in critical performance parts such as Maestro Suspension rocker links.
More Info
Tubeless System
Whether you’re cornering in a crit, climbing technical singletrack or cruising through the city, you'll be free to ride without worrying about your bike's tires on your next adventure.
More Info| XS | S | M | ML | L | XL | ||
| SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | ||
| A | Seat Tube Length (MM) | 430 | 450 | 470 | 490 | 510 | 530 |
| B | Seat Tube Angle | 74.0° | 73.5° | 73.5° | 73.0° | 73.0° | 73.0° |
| C | Top Tube Length (MM) | 540 | 550 | 560 | 575 | 585 | 600 |
| D | Head Tube Length (MM) | 125 | 135 | 150 | 165 | 180 | 195 |
| E | Head Tube Angle | 70.0° | 71.0° | 71.5° | 72.0° | 72.0° | 72.0° |
| F | Fork Rake (MM) | 50 | 50 | 50 | 50 | 50 | 50 |
| G | Trail (MM) | 78.0 | 82.0 | 72.0 | 75.0 | 68.0 | 72.0 | 65.0 | 68.0 | 65.0 | 68.0 | 65.0 | 68.0 |
| H | Wheelbase (MM) | 1024 | 1034 | 1020 | 1030 | 1026 | 1036 | 1031 | 1041 | 1041 | 1051 | 1056 | 1066 |
| I | Chain Stay Length (MM) | 425 | 435 | 425 | 435 | 425 | 435 | 425 | 435 | 425 | 435 | 425 | 435 |
| J | Bottom Bracket Drop (MM) | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 |
| K | Stack (MM) | 556 | 570 | 586 | 602 | 616 | 630 |
| L | Reach (MM) | 381 | 381 | 387 | 391 | 397 | 407 |
| M | Stand Over Height (MM) | 724 | 731 | 740 | 747 | 757 | 764 | 774 | 780 | 791 | 797 | 807 | 814 |
| N | Handlebar Width (MM) | 420 | 420 | 440 | 440 | 460 | 460 |
| O | Stem Length (MM) | 50 | 60 | 70 | 80 | 80 | 90 |
| P | Crank Length (MM) | 170 | 170 | 172 | 172 | 175 | 175 |
